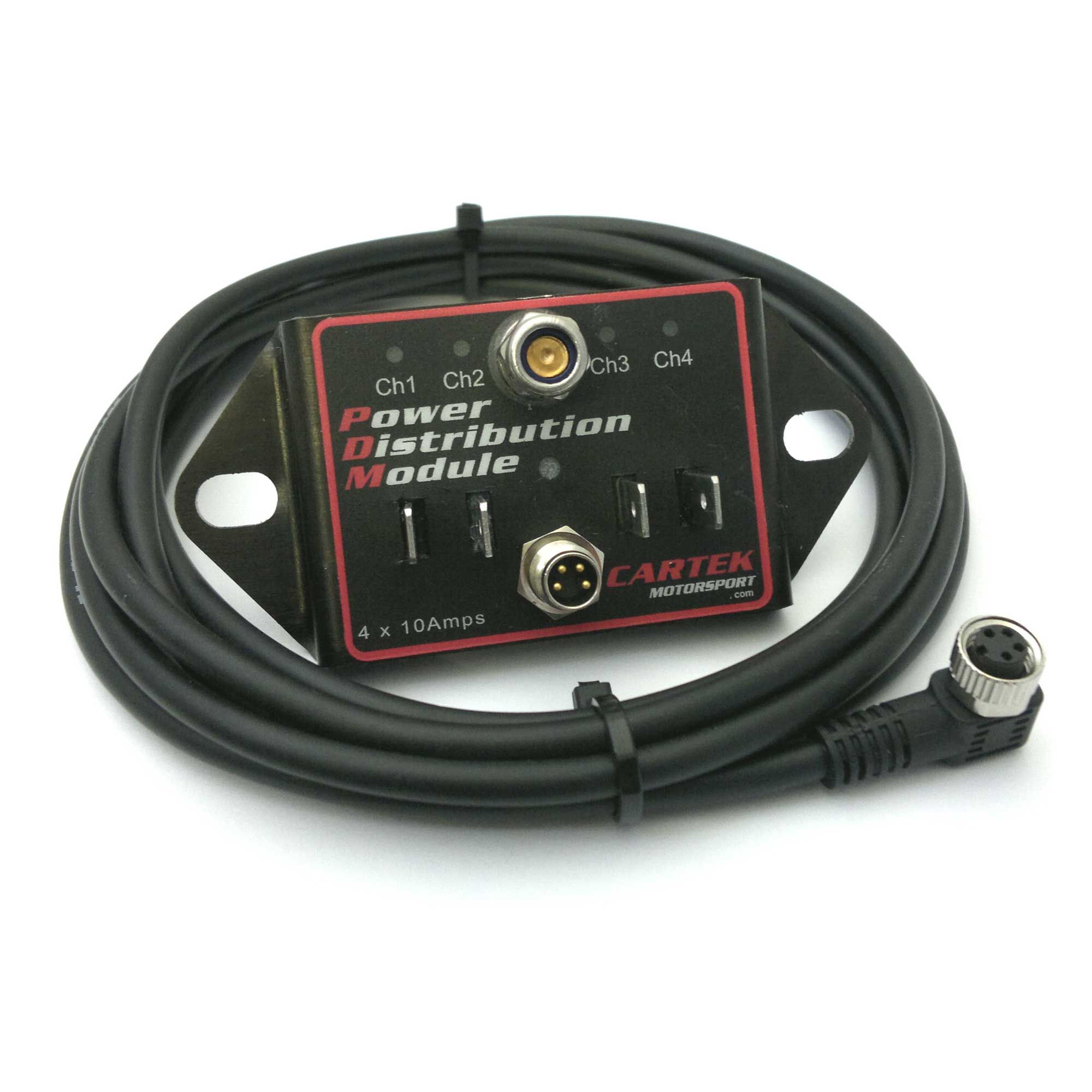

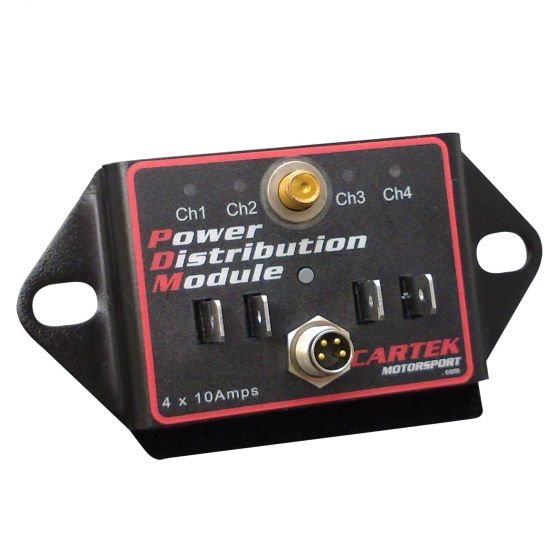

Cartek’s 4 Channel Distribution Module which has been designed to replace the functions of fuses, circuit breakers and relays in one small, fully electronic unit. It has no moving parts and is sealed against water and dirt. Vibration and shock resistance is another appealing feature to the harsh environment of Motorsport.

This unit is the ideal solution for race cars and also motorcycles. Both type of vehicle have minimal on-board electrical circuits, however they still require a rugged and reliable protection and control.

The unit has simple connections with no configuration procedures, making it quick and easy to install. The outputs on the unit can be used to control power to various devices such as ECU, fuel pumps, instrumentation, lighting, starter solenoid, radiator fan, etc. Visual over-current and short-circuit indication makes fault finding simple.

• Fully electronic with no moving parts.
• Totally sealed against water and dirt.
• Completely resistant to shock and vibration.
• Each channel incorporates over-current protection.
• Channels can be controlled by switch or signal inputs.
• Dual-coloured status LED for each channel.
• Very small and weighs just 80g.
• Manufactured in UK using high quality components.

Specification

• Positive power terminal: M6 brass stud.
• Channel output connections 6.3mm male spade terminals.
• Operational Voltage: 7v – 18v.
• Power switching current: 10A max each channel.
• Current consumption: 0.02A (No load).
• Power switching current: 10A max each channel.
• Operating temperature: -10°C – 85°C.

Dimensions / Weight:

• L = 90mm, W = 42mm. D= 10.5mm
• Weight: 80g.
• Switch panels designed to work with the power distribution module are available to purchase separately. View here.
